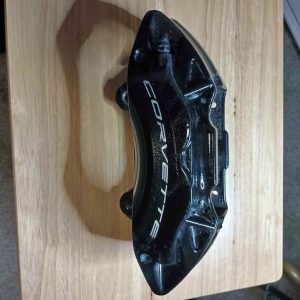

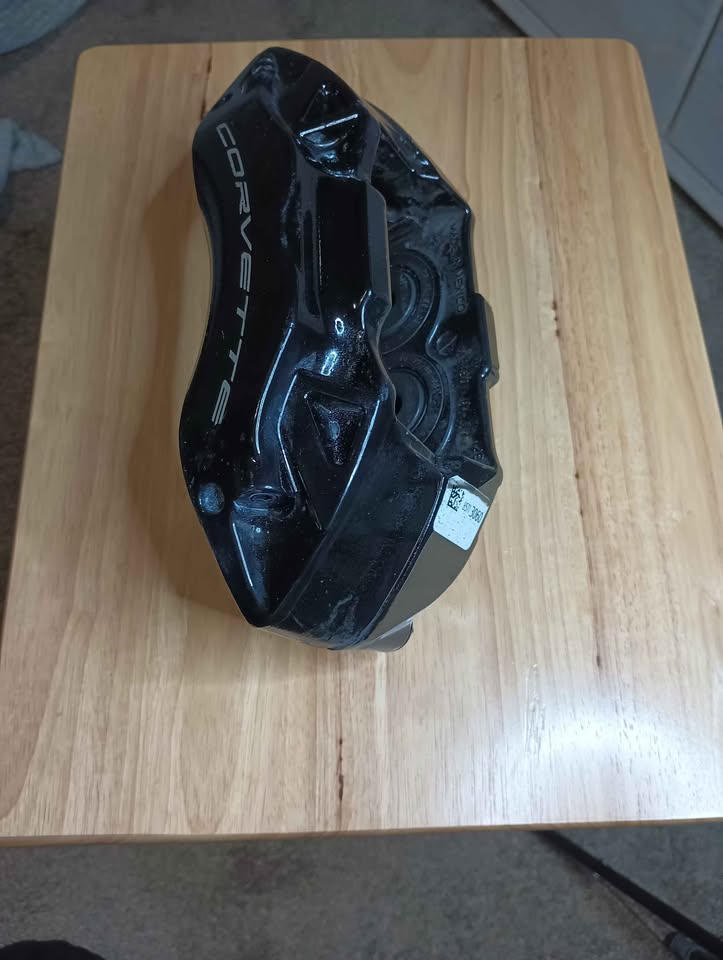

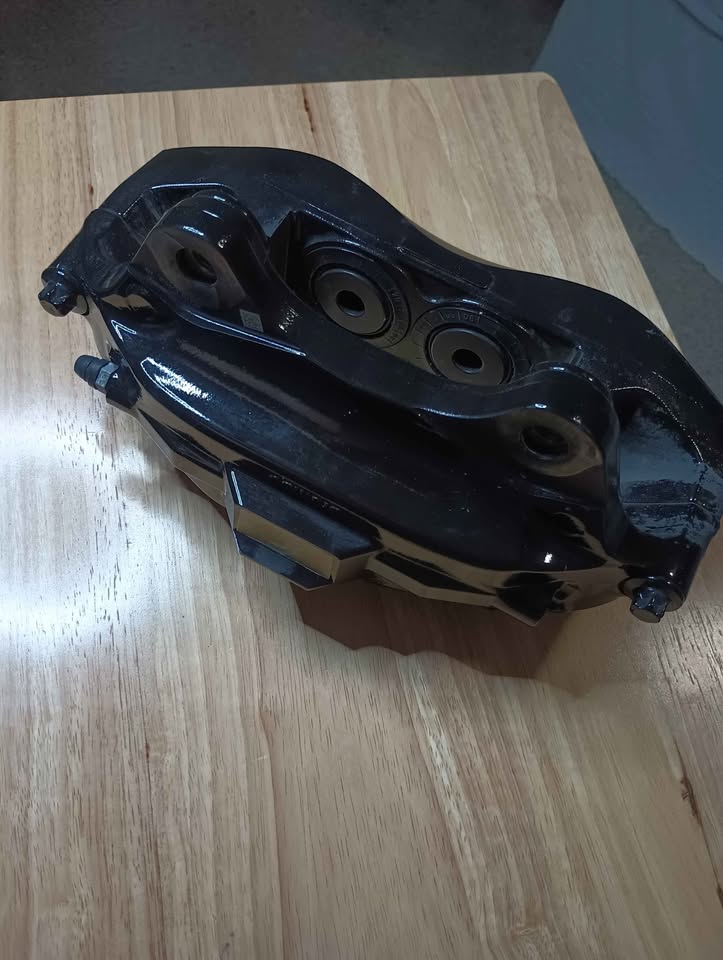

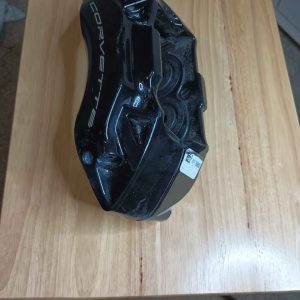

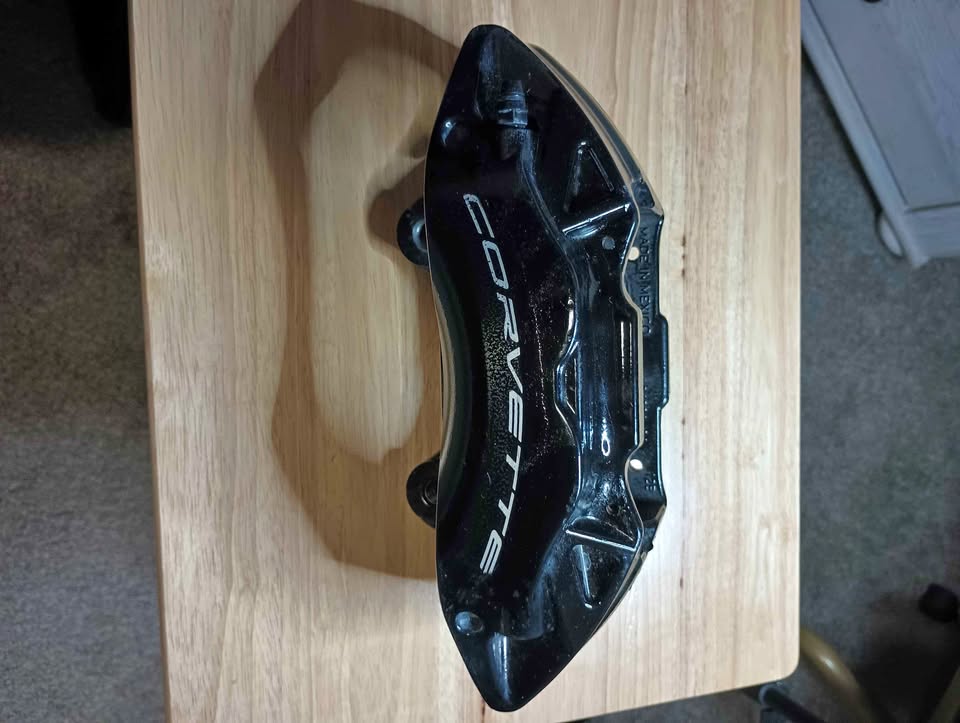

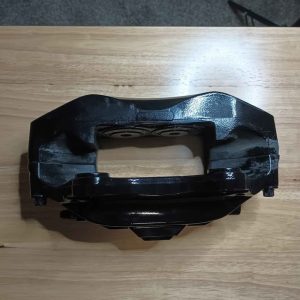

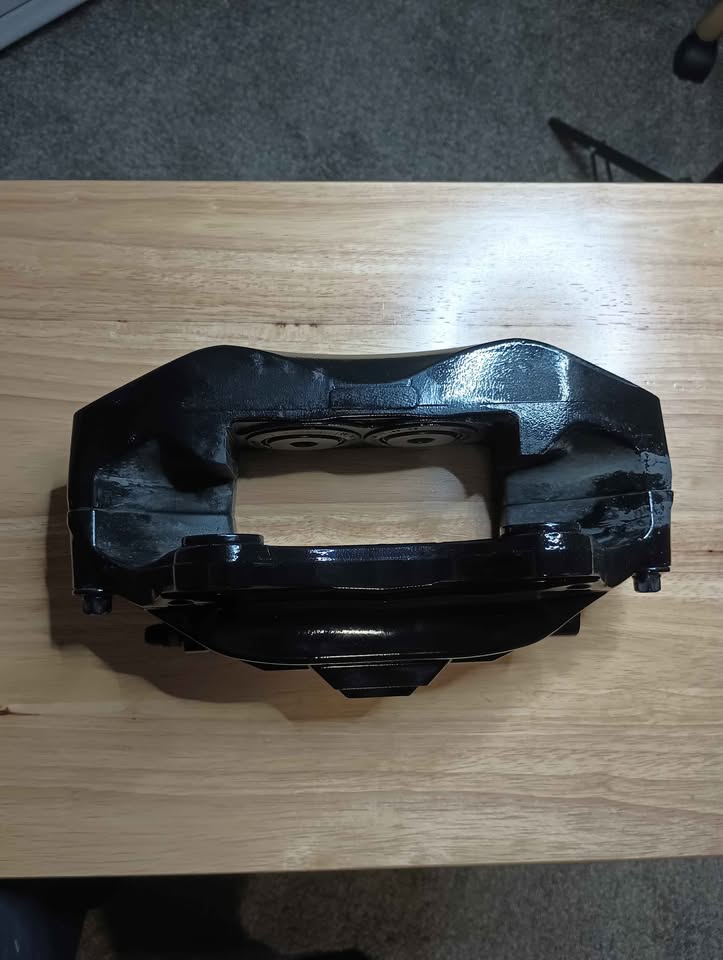

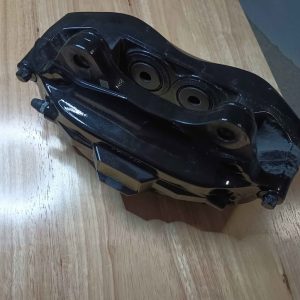

2025 Corvette Brake Caliper – OEM Replacement or Performance Upgrade | C8 Stingray / Z06 / E-Ray

2025 Corvette Brake Caliper – OEM Replacement or Performance Upgrade | C8 Stingray / Z06 / E-Ray

—

PRODUCT OVERVIEW

Upgrade or replace the brake calipers on your 2025 Chevrolet Corvette C8. The C8 Corvette comes standard with high-performance Brembo braking systems across all trims, including Stingray, Z06, and E-Ray models [citation:5]. For 2025, GM continues to offer multiple caliper color options and performance levels, from standard cast iron to carbon-ceramic systems on Z06 and Z07 packages [citation:1][citation:3].

Whether you need a direct OEM replacement for a damaged caliper, want to change your caliper color, or are looking to upgrade to race-ready Wilwood brakes for track use, we have options to suit your needs.

—

OEM BREMBO CALIPER OPTIONS

The 2025 Corvette C8 utilizes Brembo calipers as factory equipment across all models [citation:5]. These are available in several factory colors:

**Standard Caliper Colors (Stingray / E-Ray / Z06):**
– **Bright Red** – Standard on Z06 with Z07 package [citation:1] – **Edge Red** – Available on E-Ray and other models [citation:3] – **Velocity Yellow** – Available as factory option [citation:3] – **Orange** – Available as factory option [citation:3] – **Dark Gray Metallic** – Standard on carbon ceramic brake equipped models [citation:3]

**OEM Part Numbers Reference:**
– ACDelco 85644554 – Front Brake Caliper Assembly (Velocity Yellow finish) [citation:6] – Multiple other part numbers available by side, color, and model

**Brembo Specifications:**
– Stingray: 4-piston front and rear calipers (standard)
– Z06 / Z07: Carbon-ceramic brakes with multi-piston Brembo calipers [citation:1] – E-Ray: Performance Brembo carbon ceramic brakes available [citation:3]

—

PERFORMANCE UPGRADE: WILWOOD RACING CALIPERS

For track enthusiasts and serious performance drivers, Wilwood Engineering offers complete big brake upgrade kits for the 2020-2025 C8 Corvette [citation:2][citation:7].

**Wilwood AERO6/ST Front Calipers:**
– Six-piston design for superior stopping power
– Stress-flow forged construction
– Thermlock piston technology for improved heat management
– Type III hard anodized finish for durability

**Wilwood AERO4/ST Rear Calipers (with Electronic Parking Brake):**
– Four-piston design
– Integrated EPB (Electric Parking Brake) with dedicated wiring harness
– Works with factory master cylinder and onboard computers [citation:2][citation:9] – Includes control unit for plug-and-play installation

**Rotor Options:**
– 15.00″ x 1.25″ GT slotted rotors
– 72 curved cooling vanes for heat dissipation
– Dynamic lug mount floating rotors with Spec37 alloy [citation:7]

—

VEHICLE FITMENT

✅ Compatible Models (2025):
– 2025 Chevrolet Corvette C8 Stingray (1LT, 2LT, 3LT)
– 2025 Chevrolet Corvette C8 Z06 (1LZ, 2LZ, 3LZ)
– 2025 Chevrolet Corvette C8 E-Ray (1LZ, 2LZ, 3LZ)
– 2025 Chevrolet Corvette C8 Z07 Performance Package

✅ Compatible Years:
– 2020-2025 C8 Corvette (most calipers)
– 2025-2026 C8 Corvette (select options) [citation:5][citation:6]

❌ Does NOT Fit:
– C7 Corvette (2014-2019)
– C6 Corvette and earlier generations

—

WHAT’S INCLUDED

**OEM Brembo Caliper:**
– (1) Factory replacement caliper (driver or passenger side – specify)
– Available with or without brake pads
– Multiple color options available

**Wilwood Racing Caliper Kit:**
– (2) Front or Rear calipers (depending on kit)
– Rotors (when purchasing complete kit)
– Brake pads
– Mounting hardware
– EPB control unit and harness (rear kits)
– Installation instructions

—

CALIPER COLOR OPTIONS

**OEM Brembo Colors (2025 Corvette) [citation:3]:**
– Bright Red – Classic performance look
– Edge Red – Deeper, richer red hue
– Velocity Yellow – Bold, race-inspired yellow
– Orange – High-visibility accent
– Dark Gray Metallic – Subtle, premium finish

**Wilwood Caliper Colors:**
– Type III Hard Anodized (satin silver/gray)
– Red (powder coat option)
– Black (powder coat option)
– Custom colors available by special order

—

INSTALLATION INFORMATION

⚠️ PROFESSIONAL INSTALLATION REQUIRED ⚠️

**Installation Time:** 2-4 hours (professional shop)
**Difficulty Level:** Advanced

**General Installation Overview:**

1. Lift vehicle and remove wheels
2. Remove brake fluid reservoir cap and siphon excess fluid
3. Remove caliper mounting bolts
4. Remove old caliper and brake pads
5. Install new caliper with proper torque specs
6. Bleed brake system (critical for safety)
7. Test brake function before driving

**For Wilwood EPB Rear Calipers:**
– Connect EPB control unit to factory wiring
– Perform EPB calibration procedure

⚠️ **Important:** Brake system work requires bleeding and proper torque specifications. Professional installation strongly recommended.

—

FREQUENTLY ASKED QUESTIONS

**Will these fit my 2025 Corvette Stingray?**
Yes – OEM Brembo calipers are direct fit for all 2025 C8 Stingray models. Wilwood kits are also compatible with 2020-2025 C8 Corvettes including Stingray [citation:7].

**What colors are available from the factory for 2025?**
GM offers Bright Red, Edge Red, Velocity Yellow, Orange, and Dark Gray Metallic calipers for the 2025 Corvette C8 [citation:3].

**Does the Z06 have different calipers than the Stingray?**
The Z06 and Z07 package feature upgraded carbon-ceramic Brembo brakes with different caliper specifications than the standard Stingray [citation:1].

**Are Wilwood calipers street legal?**
Wilwood racing calipers are designed for track use but are compatible with factory systems. Check local regulations for street use.

**Do Wilwood kits work with the factory parking brake?**
Yes – the rear AERO4/ST kit includes an Electric Parking Brake (EPB) system that integrates with the factory electronics [citation:2][citation:9].

**What is the warranty?**
OEM GM parts include factory warranty. Wilwood products include manufacturer’s warranty against defects.

**Can I see more photos?**
Absolutely – contact us and we’re happy to provide additional photos.

**What’s the return policy?**
Returns accepted within specified timeframe. Contact us for complete return policy details.

—

COMPLETE YOUR BRAKE UPGRADE

Pair your calipers with:

– Performance Brake Pads (street or track compound)
– Slotted or Drilled Rotors
– Stainless Steel Brake Lines
– High-Performance Brake Fluid (DOT 4)
– Brake Caliper Paint (if painting yourself)

—

SHIPPING INFORMATION

Processing Time: 1-3 business days
Shipping Method: FedEx / UPS
Delivery Time: 3-7 business days

Local pickup is welcome – contact us to arrange.

—

ORDER YOUR 2025 CORVETTE BRAKE CALIPER TODAY

Upgrade or replace your 2025 Corvette C8 brake calipers. Choose from OEM Brembo replacements in multiple factory colors or Wilwood racing calipers for track-ready performance. Contact us with your specific model, trim, and color preference for pricing and availability!

Questions about fitment or which caliper is right for your C8? Contact our Corvette specialist team for expert assistance!
